Autonomous Laser Scanning Module for Boston Dynamics Spot

Leica BLK ARC Autonomous Laser Scanning Module for Boston Dynamics Spot

Product Description

The Leica BLK ARC is an autonomous laser scanning module for robots like the Boston Dynamics Spot. It is designed to be integrated with robotic carriers to enable autonomous mobile laser scanning with minimal or no human intervention. Users can simply plan a scan path and set BLK ARC off on its own to scan autonomously.

The BLK ARC combined with Spot creates a fast, simple, safe, and autonomous reality capture workflow. Together, they deliver fully autonomous and repeatable scan missions to capture 3D point clouds and panoramic imagery while Spot carries BLK ARC through an environment.

When mounted on Spot, the BLK ARC autonomous laser scanning module is capable of the following:

· Performs scan missions autonomously with minimal user intervention

· Easily integrates with Spots onboard sensors

· Improves robotic navigation while capturing 3D point clouds to create 3D digital twins

· Captures both static and mobile scans during the same scan mission

· Can repeat scan missions autonomously for up-to-date project progress and site changes

· Uses GrandSLAM technology: LiDAR SLAM, Visual SLAM, and an IMU for reality capture and autonomous navigation through complex environments

Please call for price quote: 800-793-3548

Product Specs

Key Features

High-end 24/7 acoustic monitoring
64-Digital MEMS microphones placed in a Sunflower Array
Integrated visual light camera

Powerful processor for onboard real time processing
- Sound classification
- Frequency filtering
- dB values and sound intensity mapping
- Event triggering

Ethernet network communications interface with installed 8-wire M12 fieldbus or RJ45 connector
Power over Ethernet (POE)
Ingress Protection IP54
Option for IO support through fieldbus coupler

With BLK ARC UI, an easy-to-use browser-based user interface, users can plan scan paths remotely using existing drawings or BIM models of your building, including large and complex spaces. This enables the user to save time and allow BLK ARC to scan complex or hazardous environments while remaining in a safe location.

BLK ARC UI enables the user to:

· Operate different sensors and robotic carriers

· Create user profiles

· Manage robot and scan settings

· Control robot trajectory and the detail camera

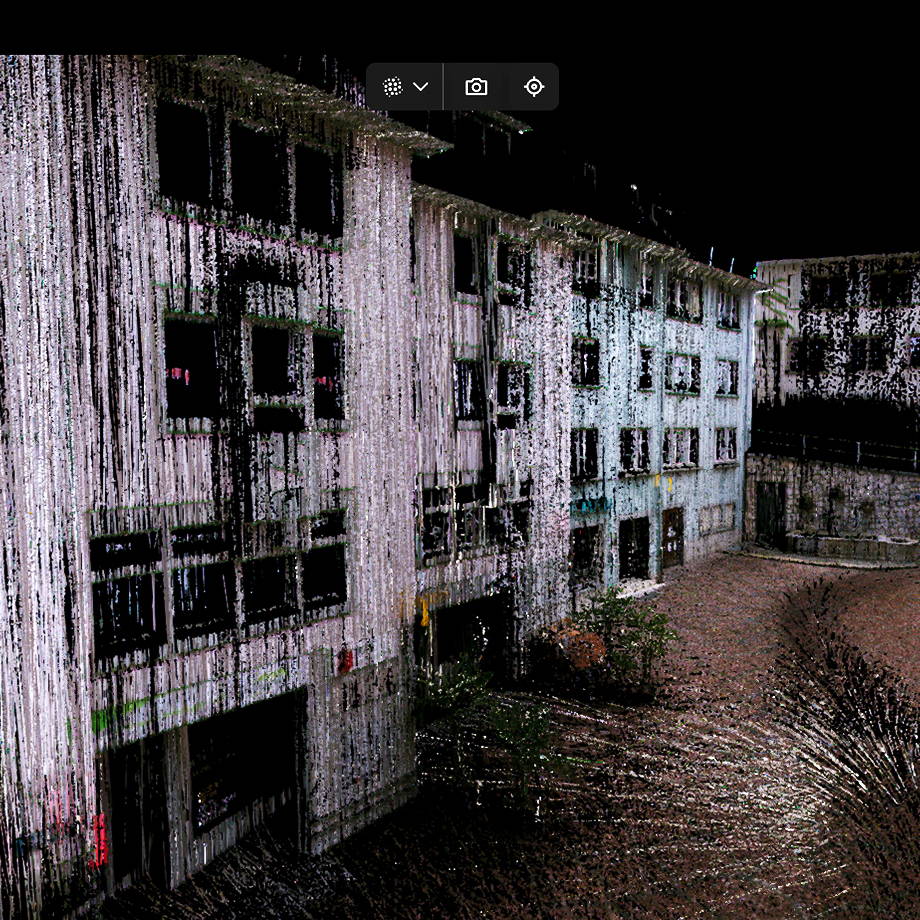

BLK ARC UI bridges the distance between the office and the field and enables uploads of offline missions planned in Cyclone 3DR to the robot. Once the mission is complete, BLK ARC UI helps to direct the data either into our legacy software, Leica Cyclone, or to direct upload from the field to HxDR.
