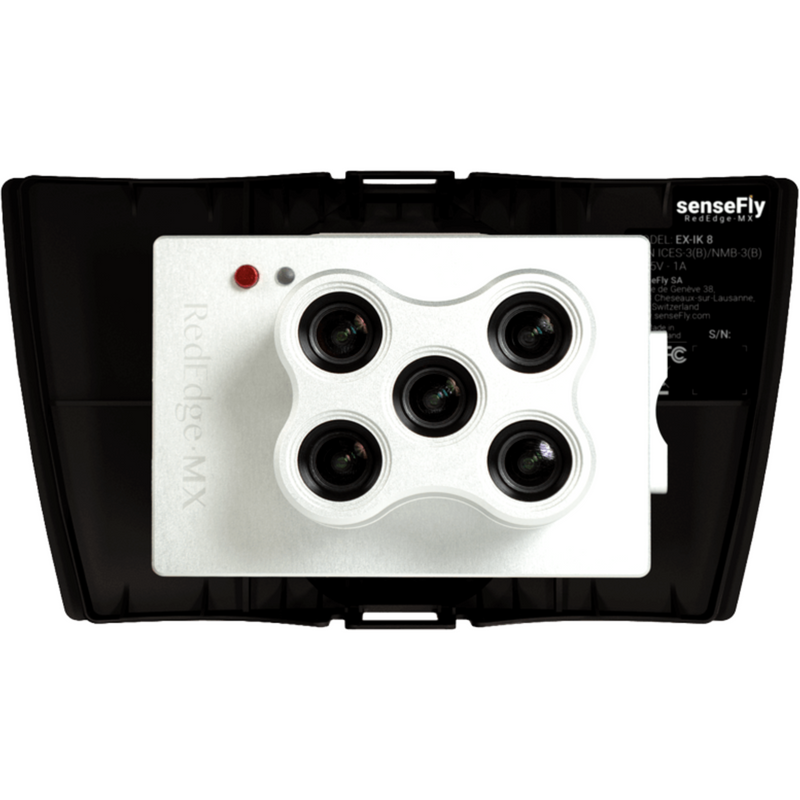

The RedEdge-MX is a rugged and precise multispectral camera for advanced agricultural analysis. This high-performance tool captures both the spectral bands required for crop health indices (green, red, red edge and near-infrared), a blue band for deeper insights into specific issues, plus composite RGB imagery.
Highlights
- GSD of 8 cm or 3.1 inches per pixel
- Global shutter for distortion free image capture
- Additional light sensor for highly-accurate radiometric calibration

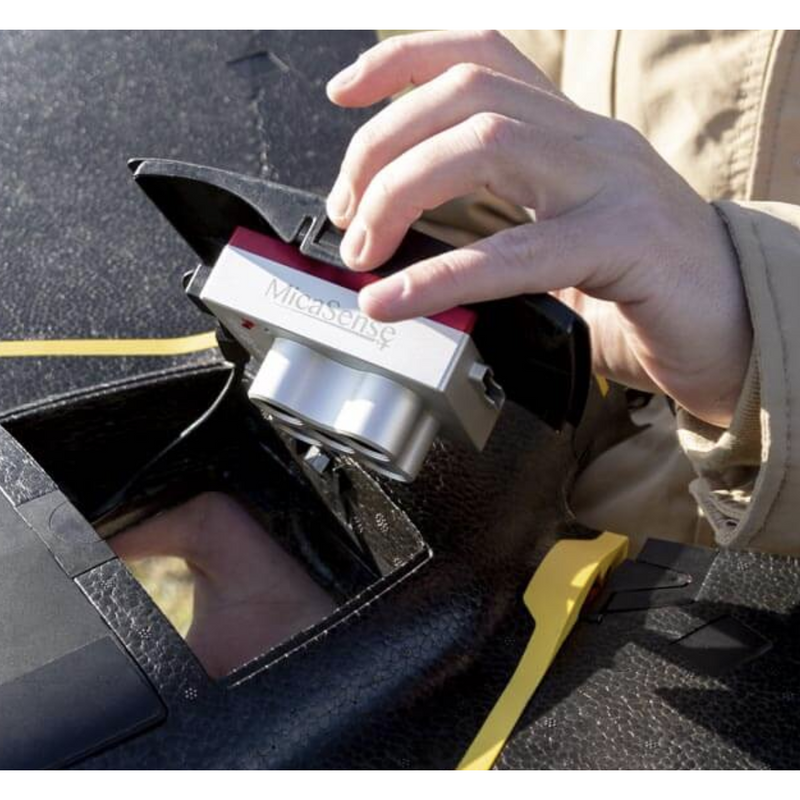

- Mounting kit required for eBee X that includes light sensor
View MicaSense RedEdge MX Datasets
MicaSense RedEdge MX Specs
Sensor - Five band multispectral sensor
Multispectral sensor - 5-band
Single-band resolution - 1.2 MP, 1,280 x 960 px (4:3)
Multispectral bands -
- Blue (475 nm center, 20 nm bandwidth)
- Green (560 nm center, 20 nm bandwidth)
- Red (668 nm center, 10 nm bandwidth)
- Red edge (717 nm center, 10 nm bandwidth)
- Near-IR (840 nm center, 40 nm bandwidth)
Single-band shutter - Global
Single-band FOV
- HFOV: 47°
- VFOV: 37°
- DFOV: 58°
Calibration - DLS 2 and included Calibrated Reflectance Panel
Operating temperature - 0°C-60°C
White balance - Automatic
