Spot CAM + IR

A pan-tilt-zoom (PTZ) RGB camera and high-resolution thermal camera

Spot CAM + IR

A pan-tilt-zoom (PTZ) RGB camera and high-resolution thermal camera

Product Description

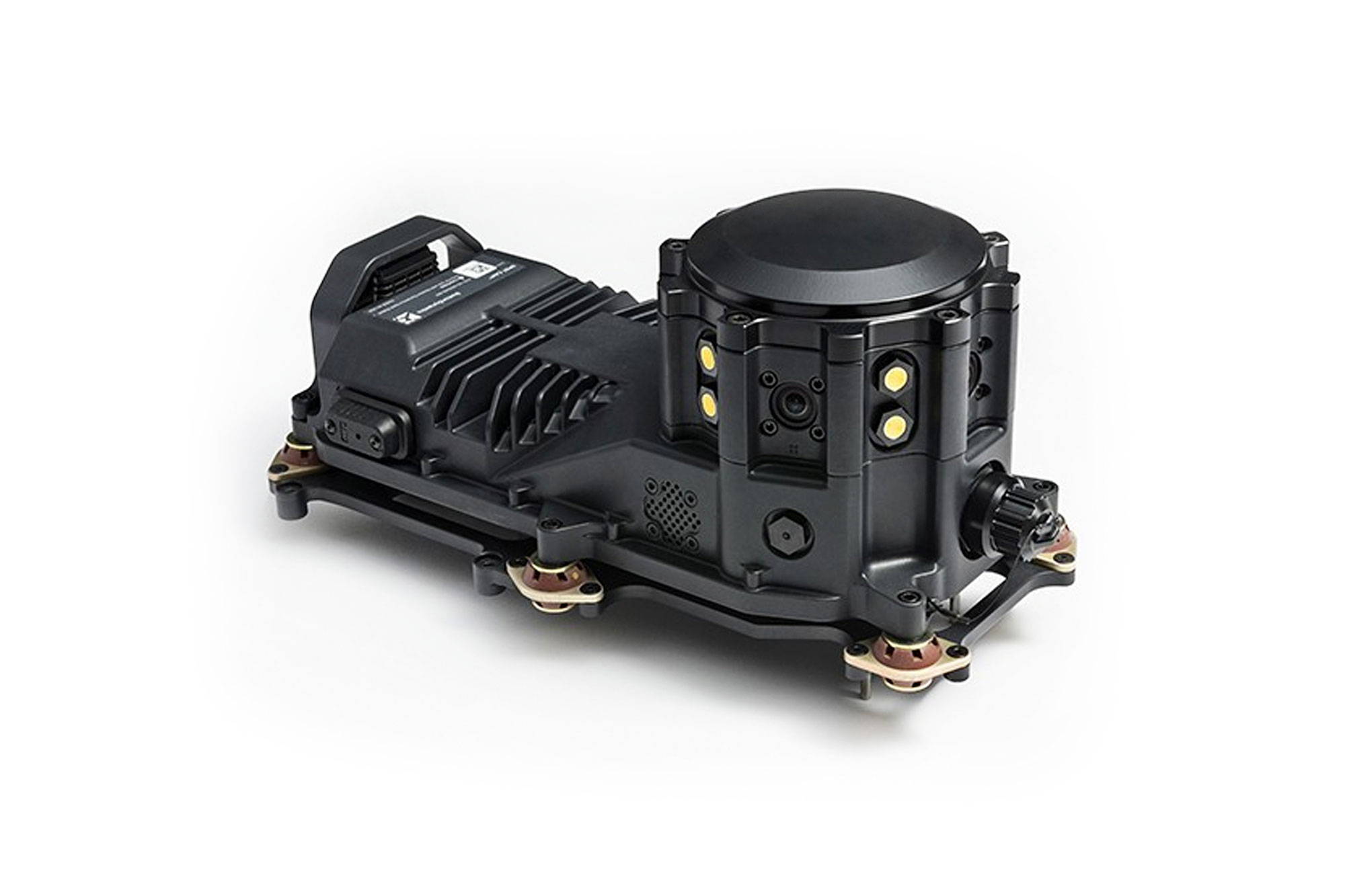

The Spot CAM+IR payload turns Spot into a powerful inspection tool with purpose-built cameras and turnkey integration. Spot CAM+IR features a color ring camera with a 360° field of view, for complete situational awareness while remotely operating the robot. A pan-tilt-zoom (PTZ) color camera with a FLIRⓇ thermal camera on top adds a powerful 30x optical zoom, enabling detailed inspections from a distance. Integrated high-sensitivity microphones and amplified speakers enable remote auditory inspections and two-way communications with operators in the field.

$38,950.00

Product Specs

Dimensions

Length: 334 mm (13.1 in)
Width: 227 mm (8.9 in)
Height: 357 mm (14.1 in)
Weight: 7.5 kg (16.4 lbs)

360 CAMERA

Field of view: 360 x 170°

Camera resolution: 10MP

Image size: 9600x4800

Camera sensor: 5x Sony IMX290

Lens focal length: 2.16 mm

Lens aperture: F2.0

PTZ CAMERA

Resolution: 2MP, 1080p resolution video

Optical zoom: 30x zoom

Pointing accuracy: 2°

Range of motion: 170°/sec

Tilt range: -30 to 270°

IR CAMERA

Scene temperature range: -40°C to +160°C (high gain) and -40°C to +550°C (low gain)

Video speed: 7.5 Hz

FoV: 69 x 56°

Image resolution: 640 x 512

Accuracy: radiometric ±5°C

AUDIO

Input: Sennheiser MKE-600 shotgun microphone

Storage: Removable 256 GB USB 3.1

ENVIRONMENT

Ingress protection: IP65

Operating temperature: -20 to 45°C

Spot CAM+IR is fully integrated with Spot’s tablet controller as well as Spot’s Scout software. Stream video from the camera to confidently teleoperate around your site. Get eyes on remote or hazardous environments with the PTZ camera, focusing on the inspection details that matter. Capture high quality photos manually or automatically with Autowalk, Spot’s out-of-box autonomy system.


Spot CAM+IR is purpose-built to collect the data you need in the challenging environments you’d rather not go to yourself.


Its image sensors are optimized for low light and its included LED illuminators enable 24/7 operations. The payload is IP65 sealed and can operate from -20 to 45°C, enabling it to go wherever Spot takes it.


Developers can further customize Spot CAM+ to their applications using its GRPC API, fully available via the Spot SDK. Audio and video streams are served by WebRTC for easy integration into your application
